| Place of Origin: | China |
|---|---|
| ชื่อแบรนด์: | Linsheng Auto II MaxM |
| Model Number: | LS-RSK-1+LS-PAT-81 |
| Minimum Order Quantity: | 1 piece |
| ราคา: | USD49 - USD399 |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12V/24VDC | Max. current: | 15A |
|---|---|---|---|
| Operation: | Wired switch & Wireless Remote Control | New remotes: | Programmable |
| Remote range: | 30 meters | IP rating: | IP66 |
| Protection: | Inbuilt | Max. load: | 4500N |
| Column outer profile: | 196.4*148.4mm | Stroke: | 100~1000mm |
| Application: | Sit-Stand Desks; TV & Monitor Stands | ||
| เน้น: | 24V electric lifting column,2-stage linear actuator with remote,4500N load lifting column |
||

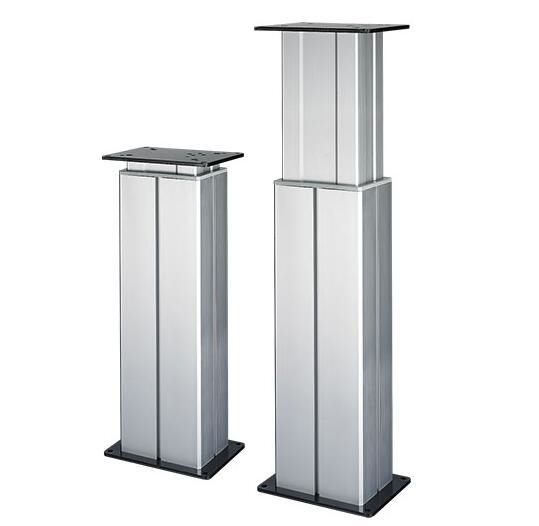

2-Stage Single Electric Pillar Lifting Column Remote Control System DC 24V

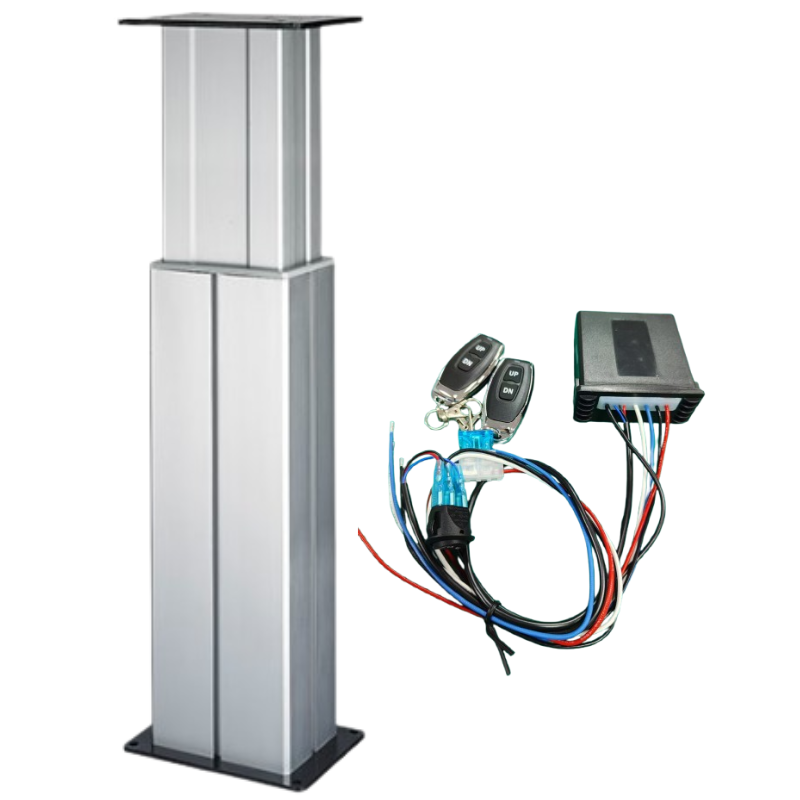

This robust 2-stage rectangular-profile lifting column delivers a maximum load capacity of 4500N, with a customizable stroke range from 100mm to 1000mm to suit various applications. Seamlessly integrated with our high-current LS-RSK-1 lifting control system, it enables smooth and effortless operation via remote control or wired switch. It's widely applied to workbenched and ergonomic workstations projects.
Specifications:
| Lifting Column Model | LS-PAT-81 |
| Max. load force | 4500N (450kg) |
| Stroke | 100mm - 1000mm |

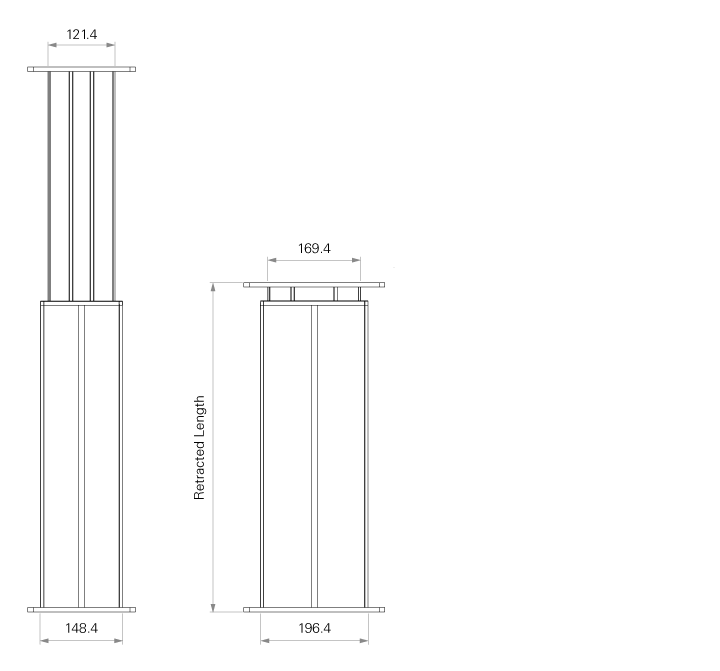

| Outer profile | 196.4*148.4mm, 2-stage, rectangular |
| Color | Silver / Black |
| Voltage | 24VDC |
| Retracted length | ≧Stroke + 147mm |

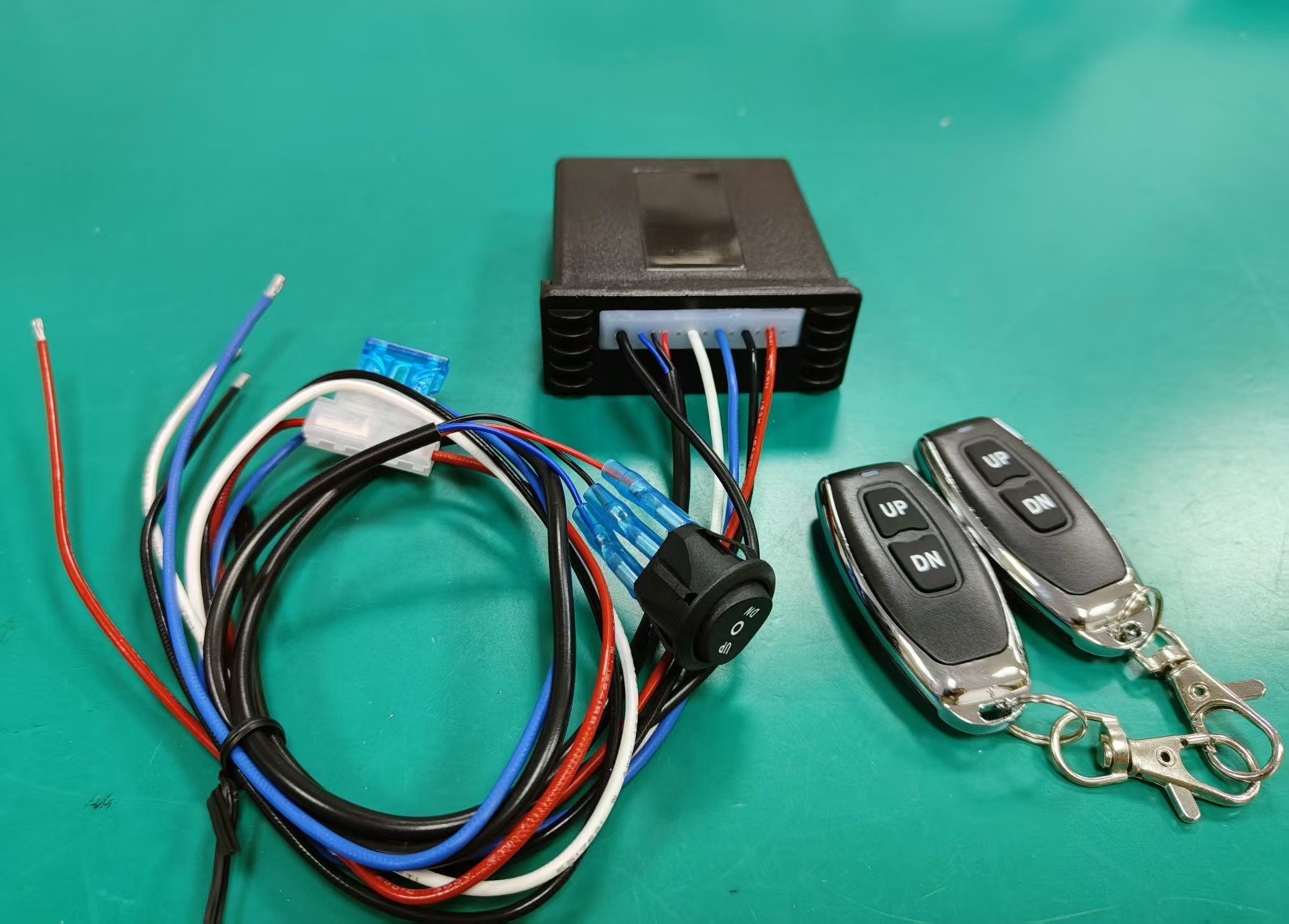

| Remote Control System Model | LS-RSK-1 |
| Working voltage | 24VDC |
| Rated current | 15A |
| Operation | fob remote + Wired switch |
| IP rating | IP66 |
| Safety Protection | Revert and stop moving when it's overcurrent |
| Function | Control one actuator UP/DOWN/STOP |
Feature:
Durability, precision, and ease of control
Application:
Adjustable desks, TV lifts, and smart furniture.
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

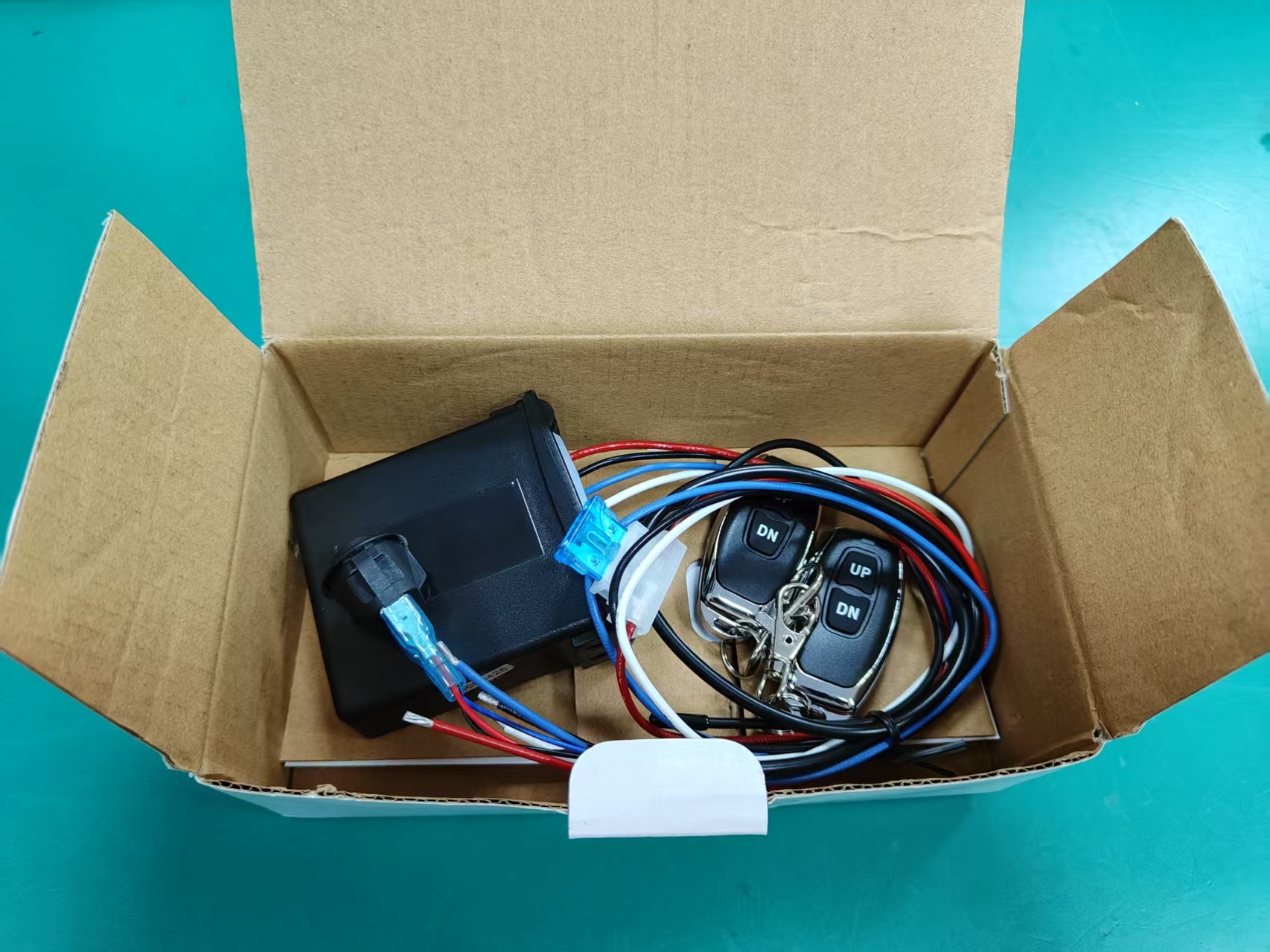

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
